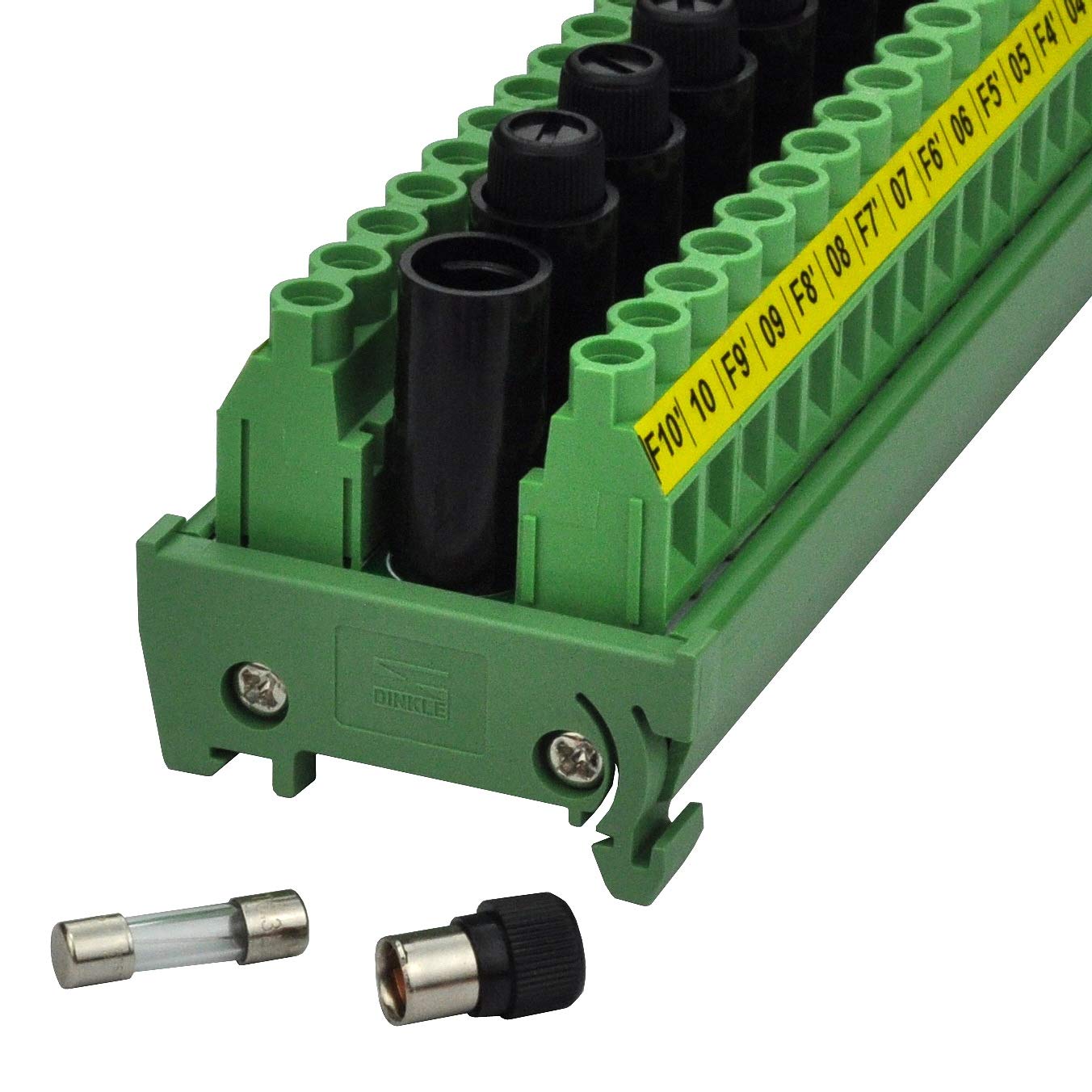

DIN Rail Mount 20 Position Screw Terminal Block Distribution Module with 10 Channel Fuses
Product details
| Management number | 218152424 | Release Date | 2026/05/03 | List Price | US$11.20 | Model Number | 218152424 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1, DIN Rail Mount 20 Position Screw Terminal Block Distribution Module with 10 Channel Fuses.2, Terminal postion 01 to 01, 02 to 02 ......, 10 to 10 direct connected, rated current 30Amp for per channel.3, Terminal postion F1 to F1', F2 to F2' ......, F10 to F10' connect via fuses, rated current 10Amp for per channel. Replaceable fuses with easy to operate fuse holders, fuse holders for D5mm x L20mm tube fuse, factory-installed fuses Slow Blow 10Amp. 4, Terminal Block: Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4.0mm square. Rated voltage 300V. Strip length 8mm. Screws - M3, steel, Cr3+ Zn plated. Pin header and Cage - Brass.5, DIN rail mount carrier: High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.
- DIN Rail Mount 20 Position Screw Terminal Block Distribution Module with 10 Channel Fuses.

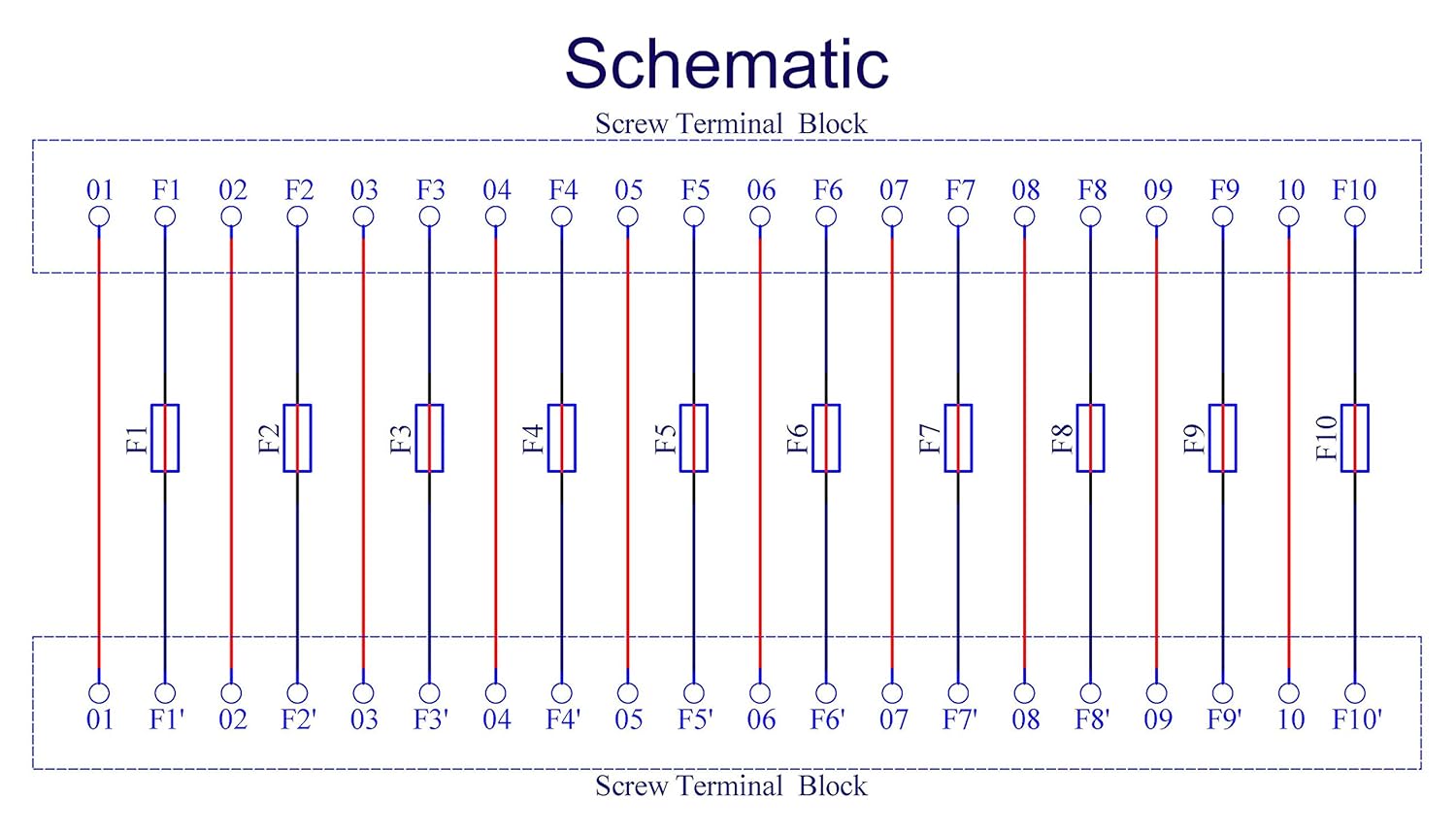

- Terminal postion 01 to 01, 02 to 02 ......, 10 to 10 direct connected, rated current 30Amp for per channel.
- Terminal postion F1 to F1', F2 to F2' ......, F10 to F10' connect via fuses, rated current 10Amp for per channel. Replaceable fuses with easy to operate fuse holders, fuse holders for D5mm x L20mm tube fuse, factory-installed fuses Slow Blow 10Amp.
- Terminal Block: Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4.0mm square. Rated voltage 300V. Strip length 8mm. Screws - M3, steel, Cr3+ Zn plated. Pin header and Cage - Brass.
- DIN rail mount carrier: High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.
| Color | Green |
|---|---|
| Gauge | 26.0 |
| Model | bdaa73db-699d-4d6b-ac14-498f7c3d22e1 |
| Pitch | 7.62 Millimeters |
| Voltage | 300 Volts |
| Brand Name | OONO |
| Manufacturer | CZH-LABS |
| Material Type | Brass |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 10 Amps |
| Number Of Poles | 20 |
| Specification Met | Din |
| Number Of Contacts | 20 |
| Number of Positions | 20 |
| Upper Temperature Rating | 85 Degrees Celsius |
