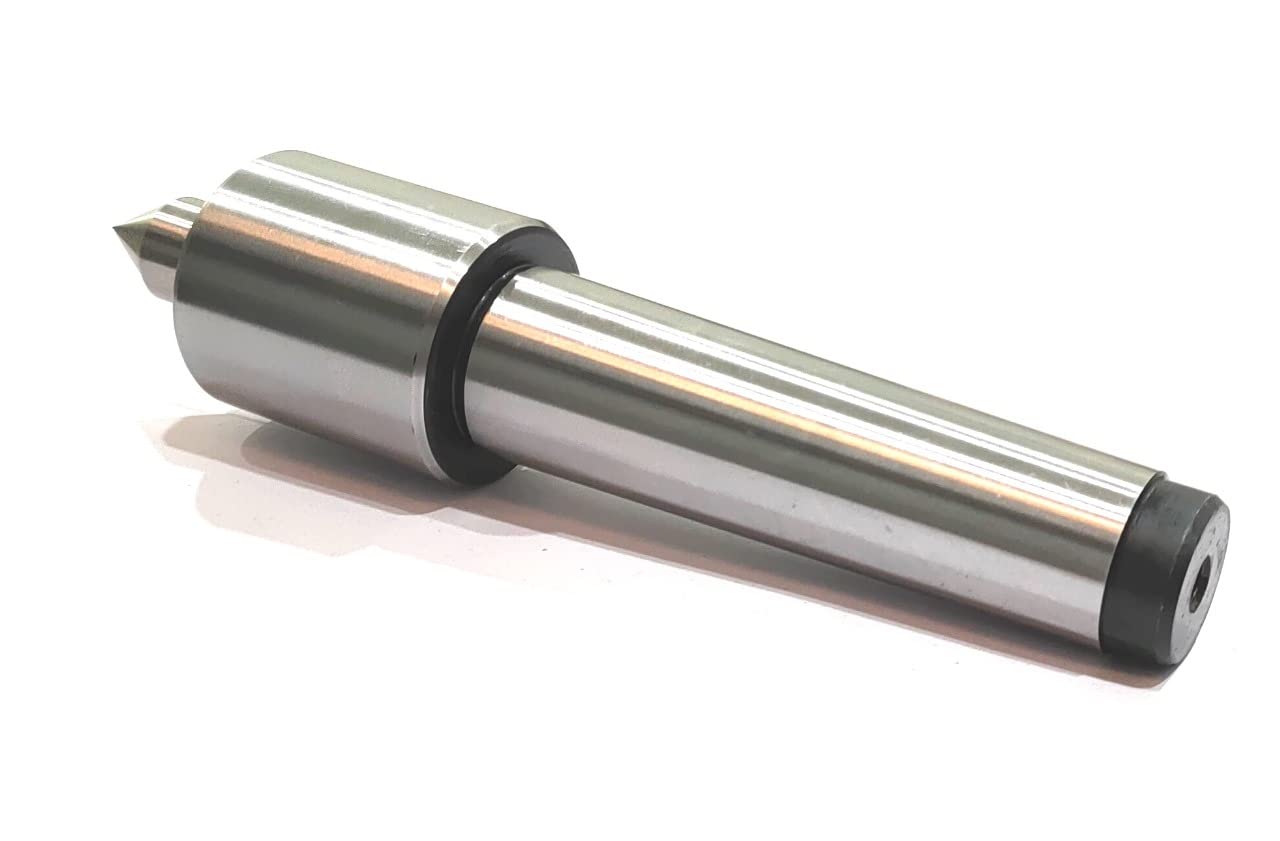

Buyohlic 2MT Shank Live Revolving Cum Pipe Center for Conventional Lathe Machines-Precision Under 5 Microns Triple Bearing

Use of product- A revolving center (or live center) is used in machining to support and rotate a workpiece on a lathe or similar machine. It helps to keep the workpiece stable, centered, and aligned during cutting or shaping operations, ensuring accurate and smooth machining. Type: Double Bearing Lathe Pipe Cum Revolving Center Runout: Under 5 microns Bearings: 1 Ball Bearing 1 Taper Bearing Body Diameter: 50 mm Bearing Body Case Length: 58 mm Overall Length (OAL): 200 mm Shank: MT3 and MT2 Body Material: Alloy steel grade EN8D Quill/Point Center Material: EN31 steel Nose Design: Allows use as both a revolving/live center and a pipe center Pipe Capacity for Turning: 12 to 28 mm Features: Precision and High Quality: Designed with double bearings for enhanced precision and durability. Maintains a runout of under 5 microns, ensuring high accuracy during operation. Material and Construction: The body is constructed from alloy steel grade EN8D, known for its strength and toughness. The quill/point center is made from EN31 steel, providing high wear resistance and durability. Versatile Usage: Unique nose design allows the tool to be used as both a revolving/live center and a pipe center. Suitable for turning pipes with a diameter range of 12 to 28 mm. Bearing Quality: Equipped with Z type (covered) bearings. These bearings are designed to lock and seal grease inside, even when it melts at high temperatures during operation, ensuring consistent performance and longevity.

• Use of product- A revolving center (or live center) is used in machining to support and rotate a workpiece on a lathe or similar machine. It helps to keep the workpiece stable, centered, and aligned during cutting or shaping operations, ensuring accurate and smooth machining.
• Bearings: 1 Ball Bearing 1 Taper Bearing
• Body Diameter: 50 mm Bearing Body Case Length: 58 mm Overall Length (OAL): 200 mm Shank: MT3 and MT2 Body Material: Alloy steel grade EN8D Quill/Point Center Material: EN31 steel Nose Design: Allows use as both a revolving/live center and a pipe center Pipe Capacity for Turning: 12 to 28 mm
• Designed with double bearings for enhanced precision and durability. Maintains a runout of under 5 microns, ensuring high accuracy during operation.
• The body is constructed from alloy steel grade EN8D, known for its strength and toughness. The quill/point center is made from EN31 steel, providing high wear resistance and durability.
• Unique nose design allows the tool to be used as both a revolving/live center and a pipe center. Suitable for turning pipes with a diameter range of 12 to 28 mm.
• Equipped with Z type (covered) bearings. These bearings are designed to lock and seal grease inside, even when it melts at high temperatures during operation, ensuring consistent performance and longevity.
